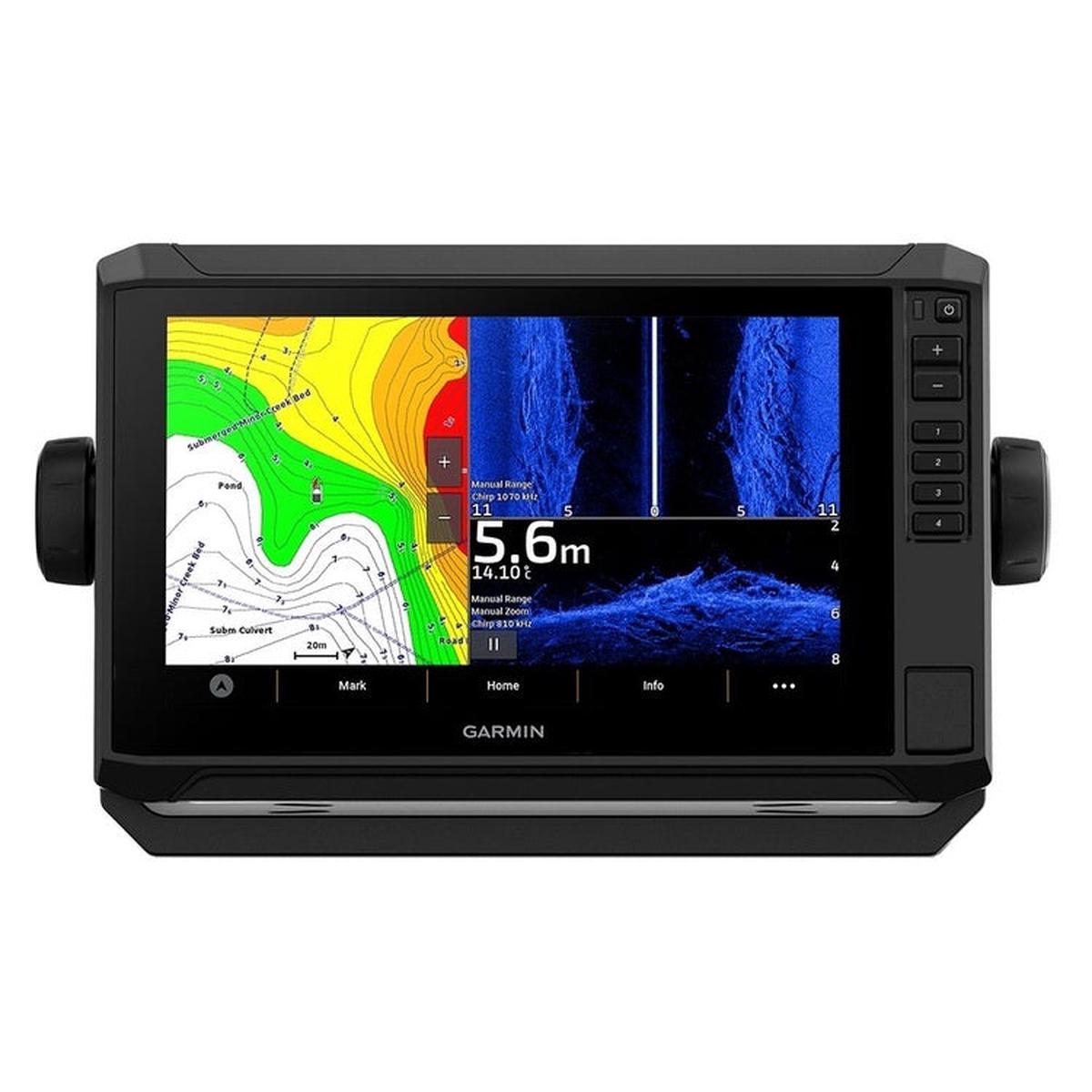

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder 010-02690-20

They advise “Talk to a local” when it comes to increasing your catch of fish. You’ll know the sea even better than they do with the ECHOMAP UHD2 chartplotter, which delivers our best-in-class sonar and mapping together with a premium touchscreen display with keyed-assist. They say locals know best. But anyone who says that hasnt fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder Features

Garmin Echomap 95SV Sounder withTransducer and Navionics

– ECHOMAP UHD2 95sv
– GT56-TM transducer
– Power data cable
– Tilt mount with quick release cradle
-Protective cover
– Hardware
– Documentation

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder Specifications

– Model: 010-02690-20
– Physical dimensions: 10.4 x 6.5 x 3.2 (26.4 x 16.6 x 8 cm)
– Weight: 2.9 lbs (1.3 kg)
– Water rating:IPX7
– Display type:WSVGA, TN
– Display resolution:1024 x 600 pixels
– Input: Touchscreen with keyed assist

Maps and Memory

– Accepts data cards:1 microSD card; 32 GB maximum card size
– Waypoints:5,000
– Routes:100
– Track log:50,000 points; 50 saved tracks

Chartplotter Features

– Garmin Sonar compatible:Yes
– Supports AIS (tracks target ships position): Yes
– Supports DSC (displays position data from DSC-capable VHF radio): Yes
– Frequencies supported:CHIRP (low, mid, high) / Traditional: 50/77/83/200 kHz / ClearV: 260/455/800/1000/1200 kHz
– Transmit power:500W
– CHIRP sonar technology:Yes (Built-in)
– ClearV:Yes with CHIRP (built-in)

Connections

– 12-pin Transducer ports: 1
– Garmin Marine Network Ports: 1
– NMEA 2000 Ports: Yes
– Bluetooth Pairing: Yes
– ANT+ Connectivity: Yes
– Garmin Wi-Fi- Network (local connection): Yes
